Digital Signal Processing Demystified

Amy Boyle @amylouboyle

Digital Signal Processing = DSP

  • Who am I?
  • What is DSP?
  • Sound
  • Images
  • Compression

Who Am I?

  • Software Engineer
  • Auditory Neuroscience Research

Why am I telling you this?

  • Signal "literacy"
  • Give you a starting point to dive further

What is DSP?

El procesamiento digital de señales o DSP (sigla en inglés de digital signal processing) es la manipulación matemática de una señal de información para modificarla o mejorarla en algún sentido. Este está caracterizado por la representación en el dominio del tiempo discreto, en el dominio frecuencia discreta, u otro dominio discreto de señales por medio de una secuencia de números o símbolos y el procesado de esas señales.

Take real-world continuous measurement.

Turn it into a discrete series of data points.

Use an algorithm to manipulate the data samples to do cool things.

Doing Stuff to Points

(of data)

What is a Signal?

A type of physical data that conveys information.

A description of how one parameter depends on another

Sound

Light

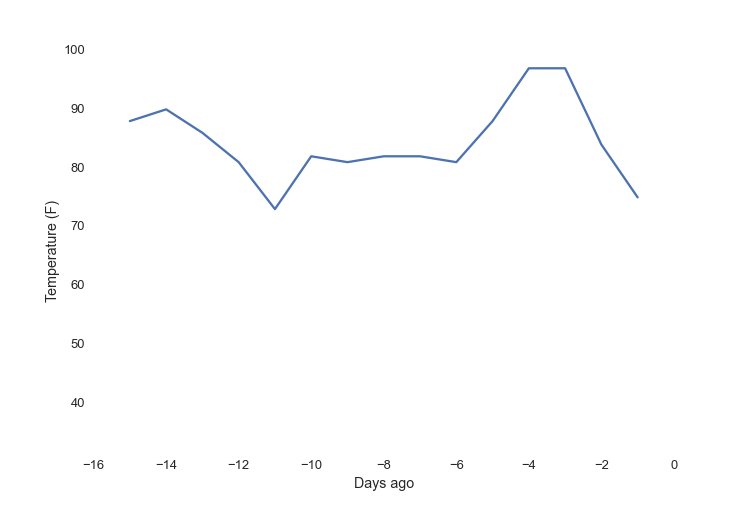

Temperature

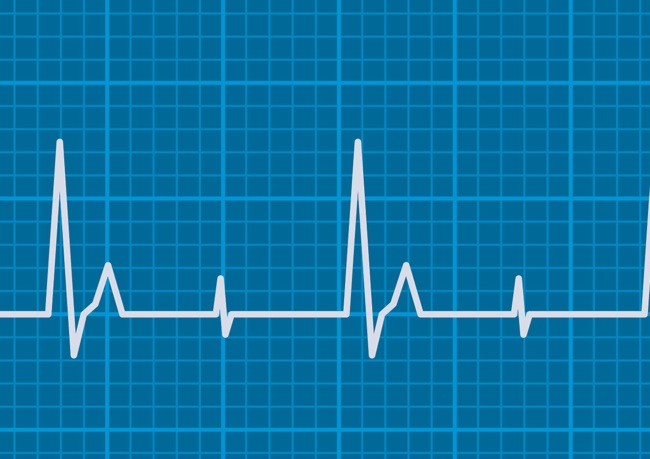

heart beats

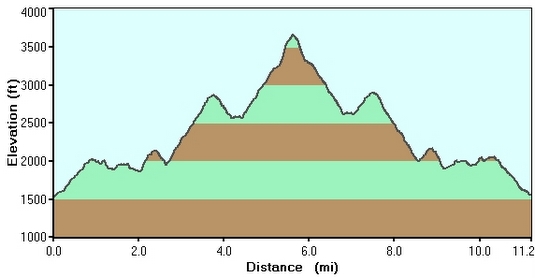

hiking trail elevation

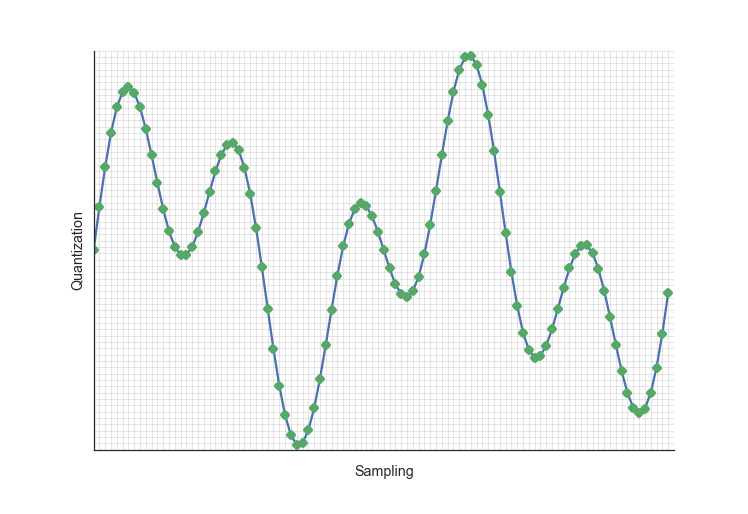

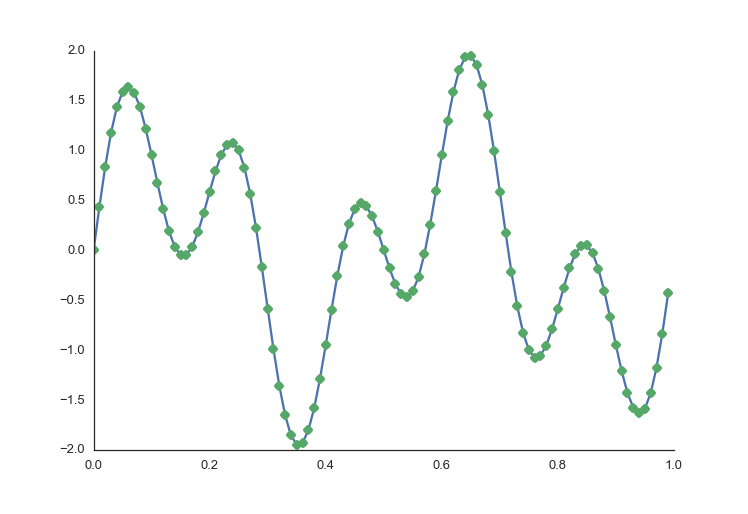

A digital signal is a signal turned into values at points in time or space

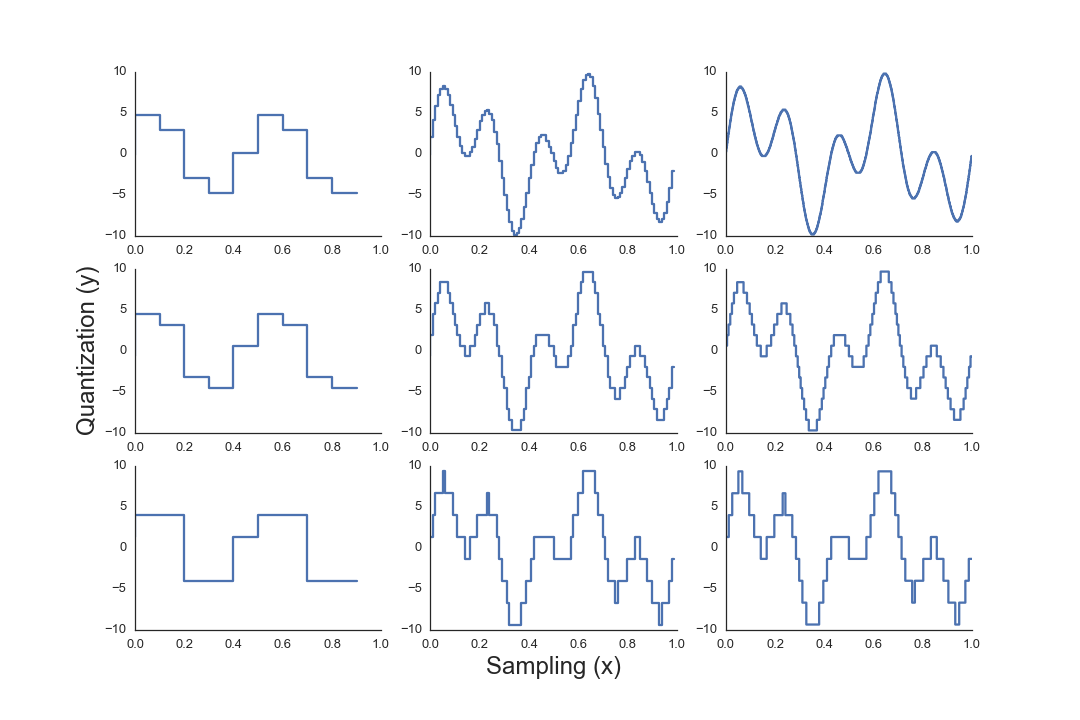

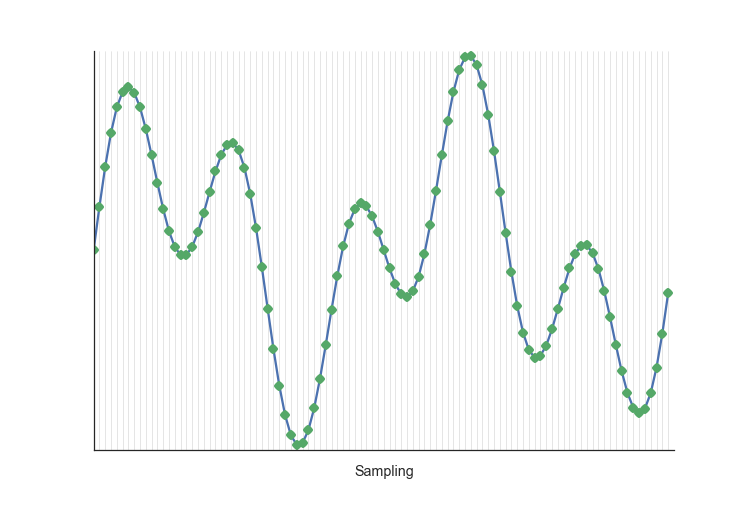

Sampling gets values at regular intervals

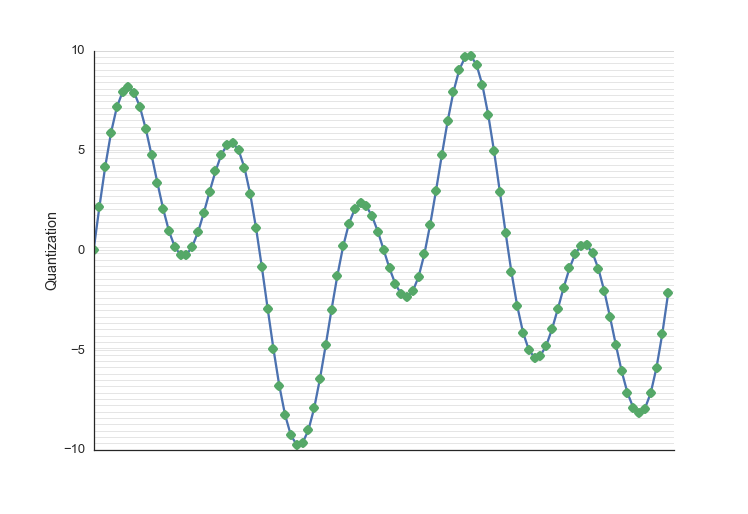

Quantization buckets values

Anytime you are doing anything to that signal, that's DSP

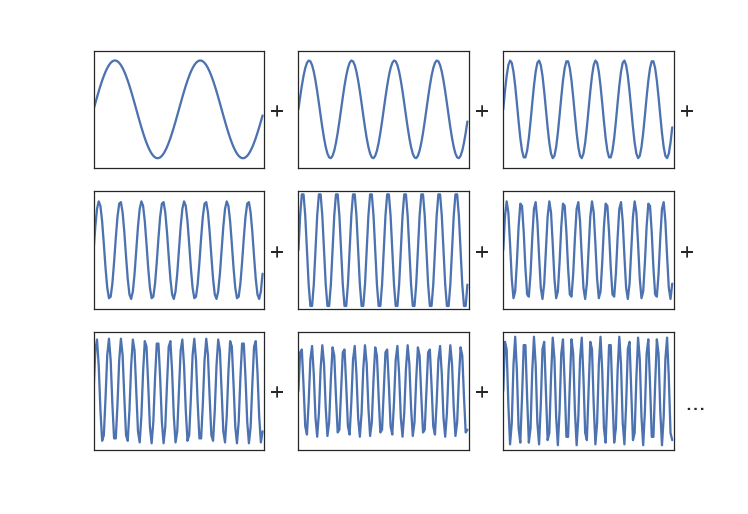

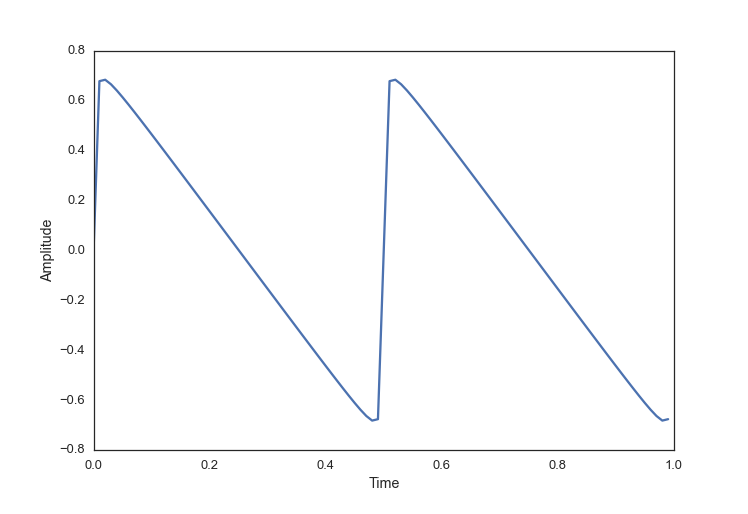

All signals are just sin/cos waves

=

	t = np.arange(0.0, 1.0, 0.01)
	signal = np.zeros_like(t)
	for i in range(2, 100, 2):
	    signal = np.sin(i * 2 * t * np.pi) / i

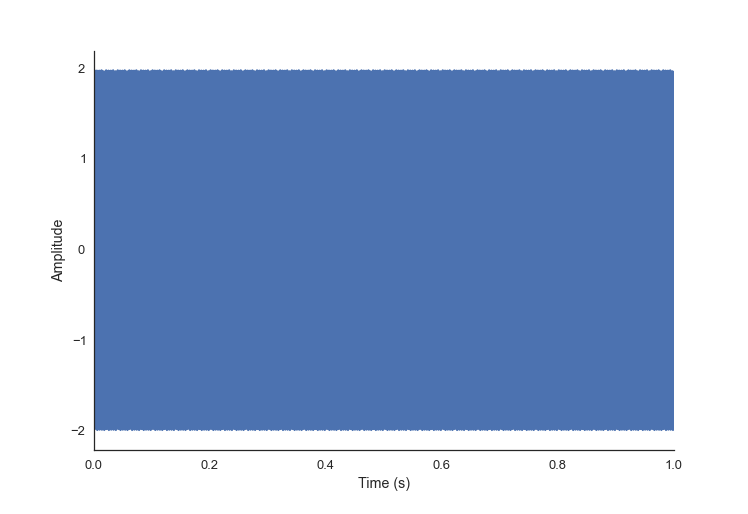

Sound Example

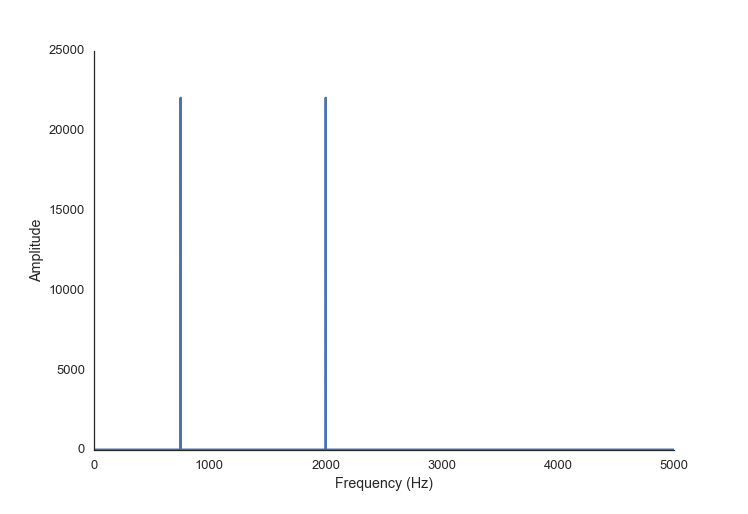

Fourier Transform converts time series data into frequency information


  import numpy as np
  import matplotlib.pyplot as plt

  fs = 44100
  step_size = 1./44100
  t = np.arange(0.0, 1.0, step_size)
  twotone = np.sin(t * 750 * 2 * np.pi) + \
  		   np.sin(t * 1500 * 2 * np.pi)

  spectrum = np.fft.rfft(twotone)
  freqs = np.fft.rfftfreq(len(twotone), 1./fs)

  plt.plot(freqs, abs(spectrum))

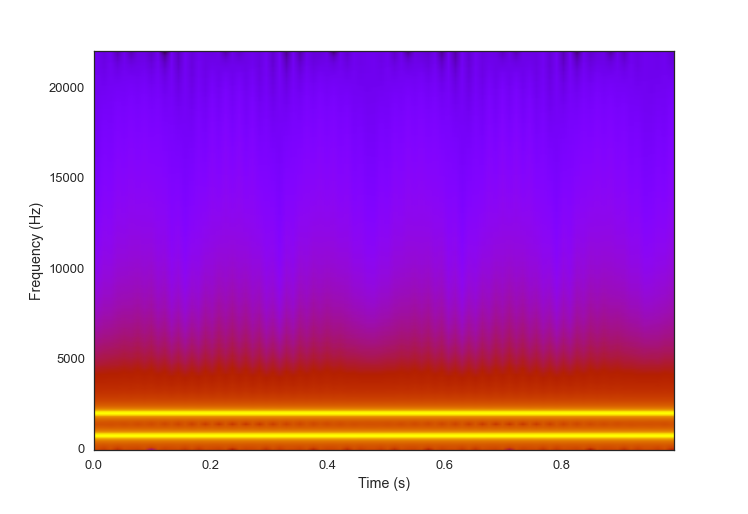

Running the FFT on time chunks gives a spectrogram


  import numpy as np
  import matplotlib.pyplot as plt

  fs = 44100
  step_size = 1./44100
  t = np.arange(0.0, 1.0, step_size)
  twotone = np.sin(t * 750 * 2 * np.pi) + \
  		   np.sin(t * 1500 * 2 * np.pi)

  plt.specgram(twotone, Fs=fs, NFFT=512,
  			 noverlap=0, cmap='gnuplot')

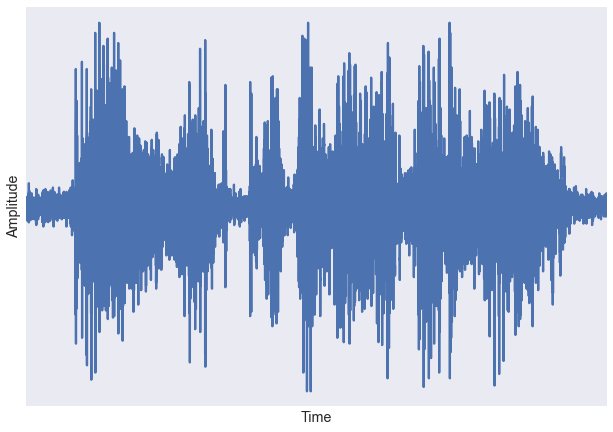

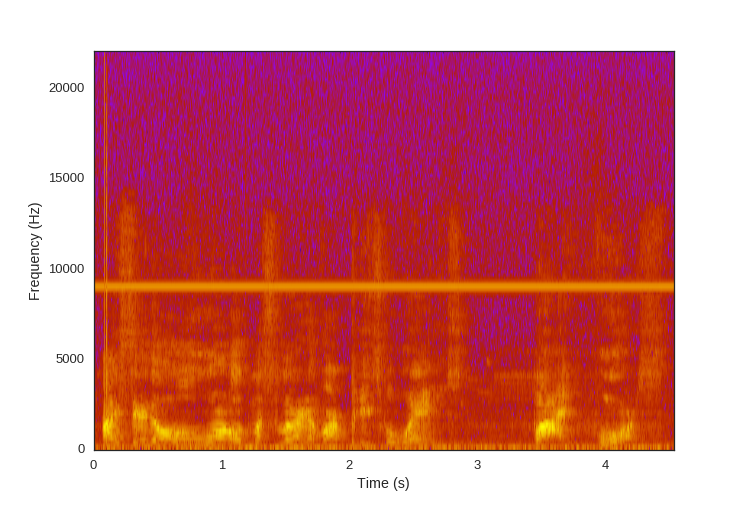

Speech is more complex



	from scipy.io import wavfile
	from scipy import signal

	fs, audio = wavfile.read('audio/distorted.wav')

	passband = 10000. #Hz
	stopband= 11000.
	nyq = 0.5 * fs

	order, normalized_cutoff = signal.buttord(passband/nyq, stopband/nyq, 3, 40)
	b, a = signal.butter(order, normalized_cutoff, btype='low')

	low_passed = np.zeros_like(audio)

	low_passed[:,0] = signal.lfilter(b, a, audio[:,0])
	low_passed[:,1] = signal.lfilter(b, a, audio[:,1])

	wavfile.write('filtered.wav', fs, low_passed)

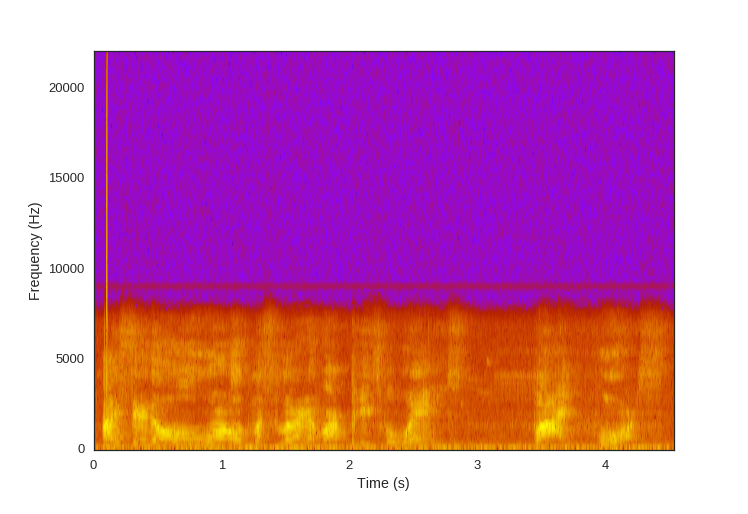

Filtered

Before
After

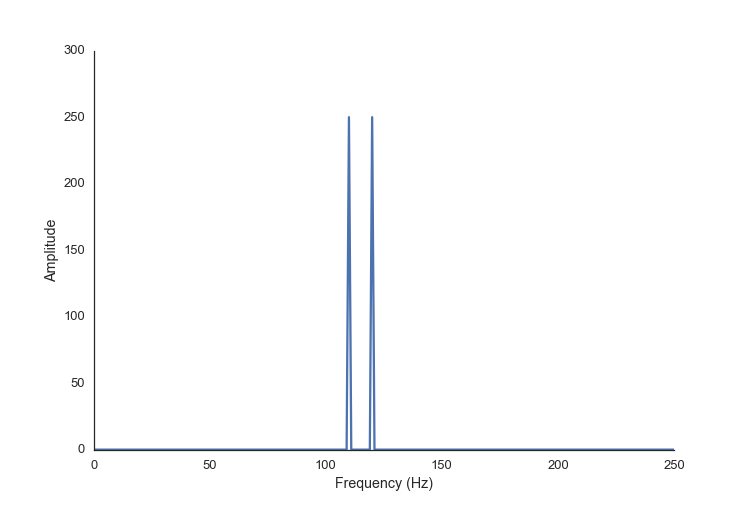

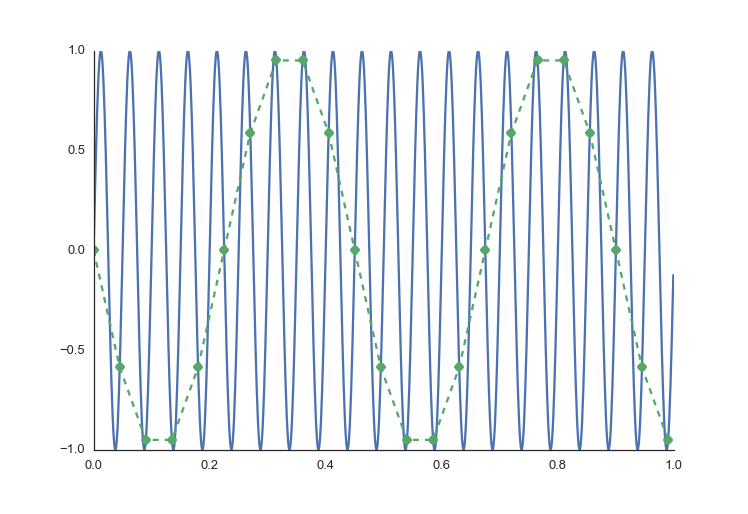

Inadequate sampling rate can cause aliasing


  fs = 500
  step_size = 1./fs
  t = np.arange(0.0, 1.0, step_size)
  freq0 = 120
  freq1 = 110
  twotone = np.sin(t * freq0 * 2 * np.pi) + \
  		  np.sin(t * freq1 * 2 * np.pi)

  spectrum = np.fft.rfft(twotone)
  freqs = np.fft.rfftfreq(len(twotone), 1./fs)

  ax, fig = plot(freqs, abs(spectrum), '
  			  Frequency (Hz)', 'Amplitude')

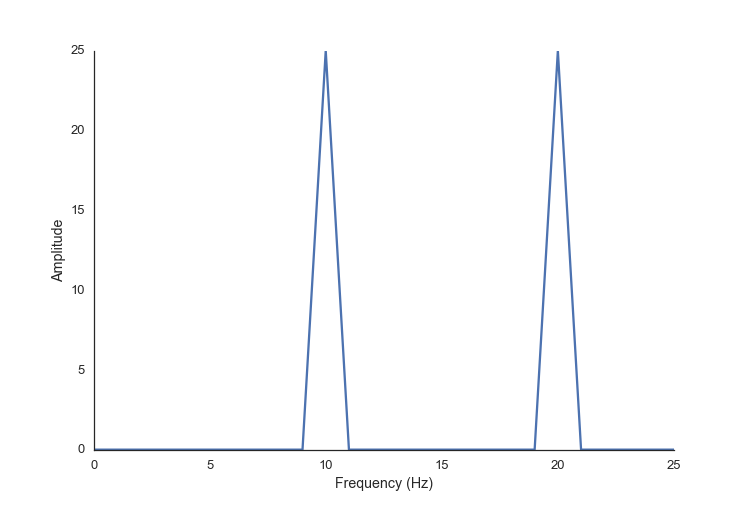

Inadequate sampling rate can cause aliasing


  fs = 50
  step_size = 1./fs
  t = np.arange(0.0, 1.0, step_size)
  freq0 = 120
  freq1 = 110
  twotone = np.sin(t * freq0 * 2 * np.pi) + \
  		  np.sin(t * freq1 * 2 * np.pi)

  spectrum = np.fft.rfft(twotone)
  freqs = np.fft.rfftfreq(len(twotone), 1./fs)

  ax, fig = plot(freqs, abs(spectrum), '
  			  Frequency (Hz)', 'Amplitude')

An Image is a 2D signal in the spatial domain

4634779697
004492112
00527792
00607175
2443616663

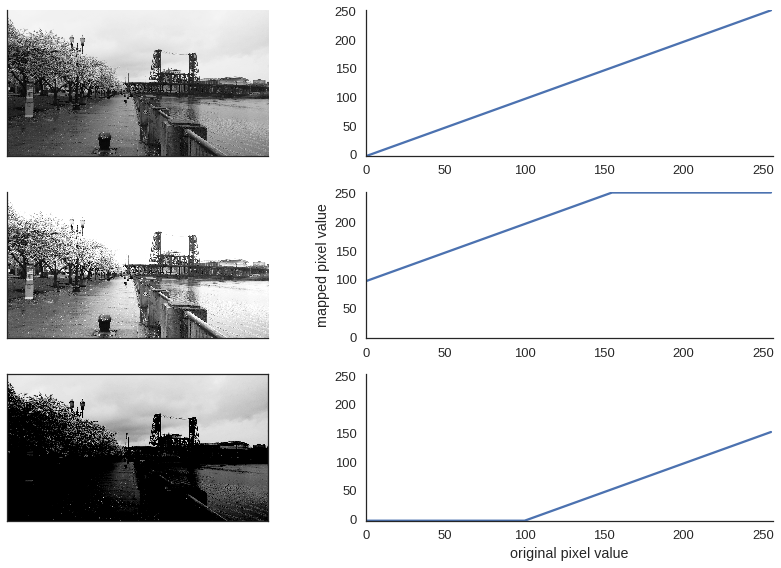

Brightness shifts pixel values up or down

Brightness shifts pixel values up or down


    image = plt.imread('img/ptown.jpg')
    imshape = image.shape
    flat_image = image.flatten()

    # increase brightness
    brighter = np.arange(256)
    brighter += 100
    brighter[brighter>255] = 255

    bright_adjusted = brighter[flat_image]
    bright_adjusted = bright_adjusted.reshape(*imshape)

    # decrease brightness
    darker = np.arange(256)
    darker -= 100
    darker[darker < 0] = 0

    bright_adjusted = darker[flat_image]
    bright_adjusted = bright_adjusted.reshape(*imshape)

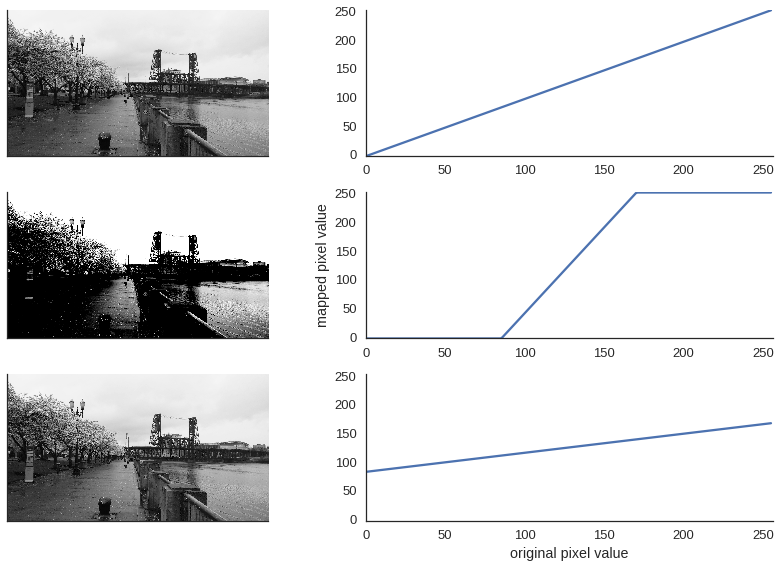

Contrast stretches pixel values

Contrast stretches pixel values


    def adjust_contrast(image, factor, brightness):
        contrast_map = np.arange(256)
        contrast_map = (contrast_map * factor) - (brightness * (factor - 1))

        contrast_map[contrast_map > 255] = 255
        contrast_map[contrast_map < 0] = 0

        return contrast_map[image], contrast_map

    adjusted_image, contrast_map = adjust_contrast(flat_image, factor=3, brightness=128)

    adjusted_image, contrast_map = adjust_contrast(flat_image, factor=1./3, brightness=128)

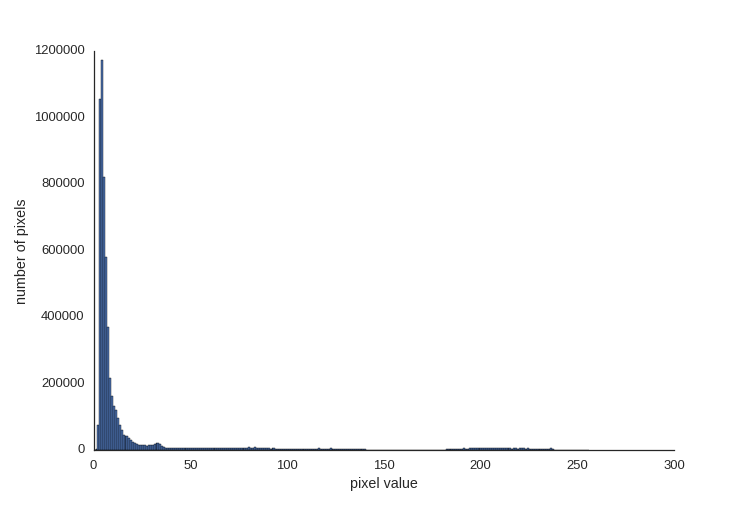

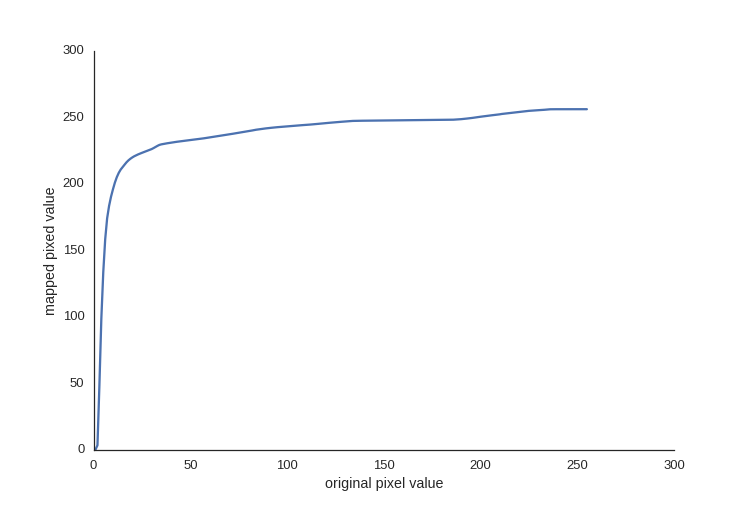

Histogram equalization stretches & shifts pixel values according to concentration

Histogram Equalization


	bin_counts, bin_numbers = np.histogram(flat_image, bins=256, range=(0,256))

Histogram Equalization


	bin_counts, bin_numbers = np.histogram(flat_image, bins=256, range=(0,256))
	npx = len(flat_image)
	histo_map = (np.cumsum(bin_counts)/float(npx))*256


	import numpy as np
	import matplotlib.pyplot as plt

	image = plt.imread('img/ninja_bw.jpg')
	imshape = ninja_bw.shape
	flat_image = ninja_bw.flatten()

	bin_counts, bin_numbers = np.histogram(flat_image, bins=256,
										   range=(0,256))
	npx = len(flat_image)
	histo_map = (np.cumsum(bin_counts)/float(npx))*256

	contrast_adjusted = histo_map[flat_image]
	contrast_adjusted = contrast_adjusted.reshape(*imshape)
	plt.imshow(contrast_adjusted, cmap=plt.cm.Greys_r)

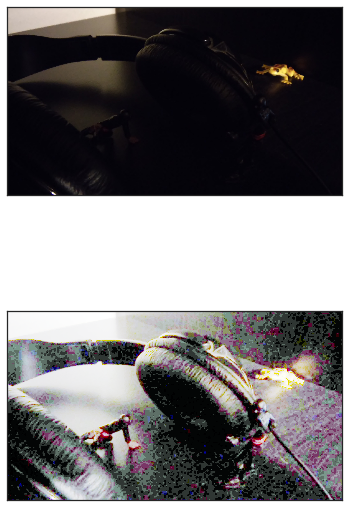

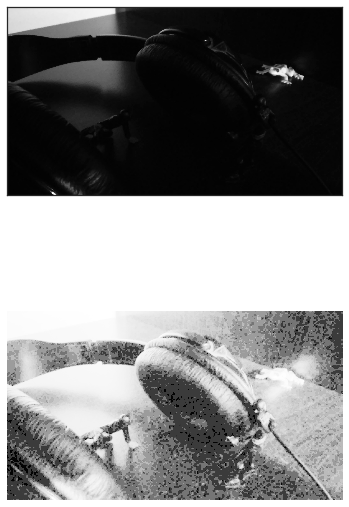

COLOR!

	from PIL import Image, ImageOps
	import matplotlib.pyplot as plt

	fig = plt.figure(figsize=(6,12))
	image = Image.open("img/foggy_headshot.jpg")
	plt.subplot(2,1,1)
	plt.imshow(image)

	equalized = ImageOps.equalize(image)
	plt.subplot(2,1,2)
	plt.imshow(equalized)

Compression with JPEG

Joint Photographic Experts Group

JPEG Compression Steps

  1. Convert RGB to YCbCr
  2. Downsample
  3. DCT
  4. Quantize
  5. Encode

Convert RBG to YCbCr


	from PIL import Image
	pimage = Image.open(image_file)
	ycbcr = pimage.convert('YCbCr')
	image_array = np.array(ycbcr)

Downsample

Assign say 4 chroma pixels for each luminance

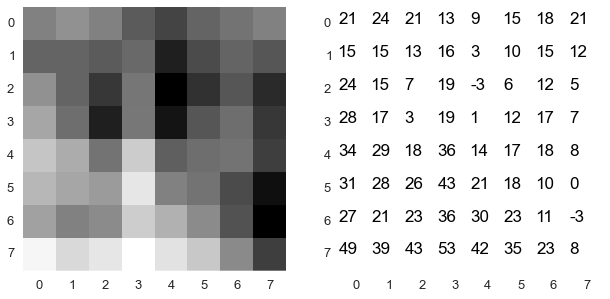

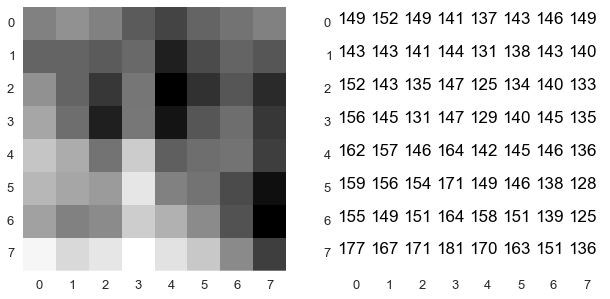

Divide image into 8x8 chunks


	for row in range(0, ylen, 8):
	    for col in range(0, xlen, 8):
	        chunk = image_array[row:row+8, col:col+8, 0]
	        ...

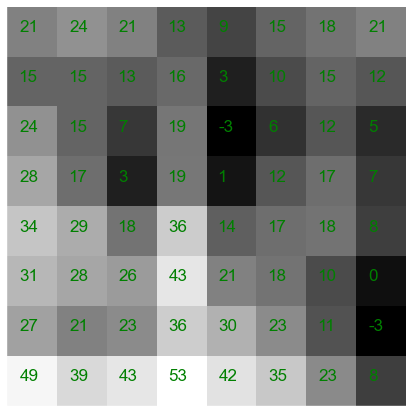

Shift pixel values to be about 0

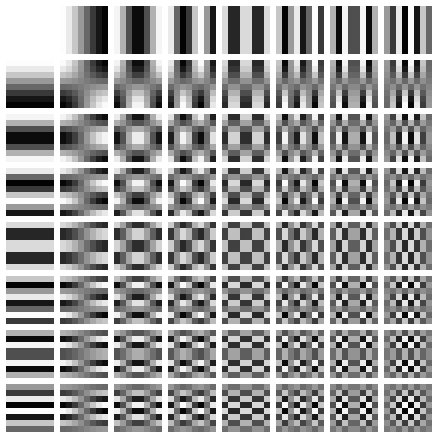

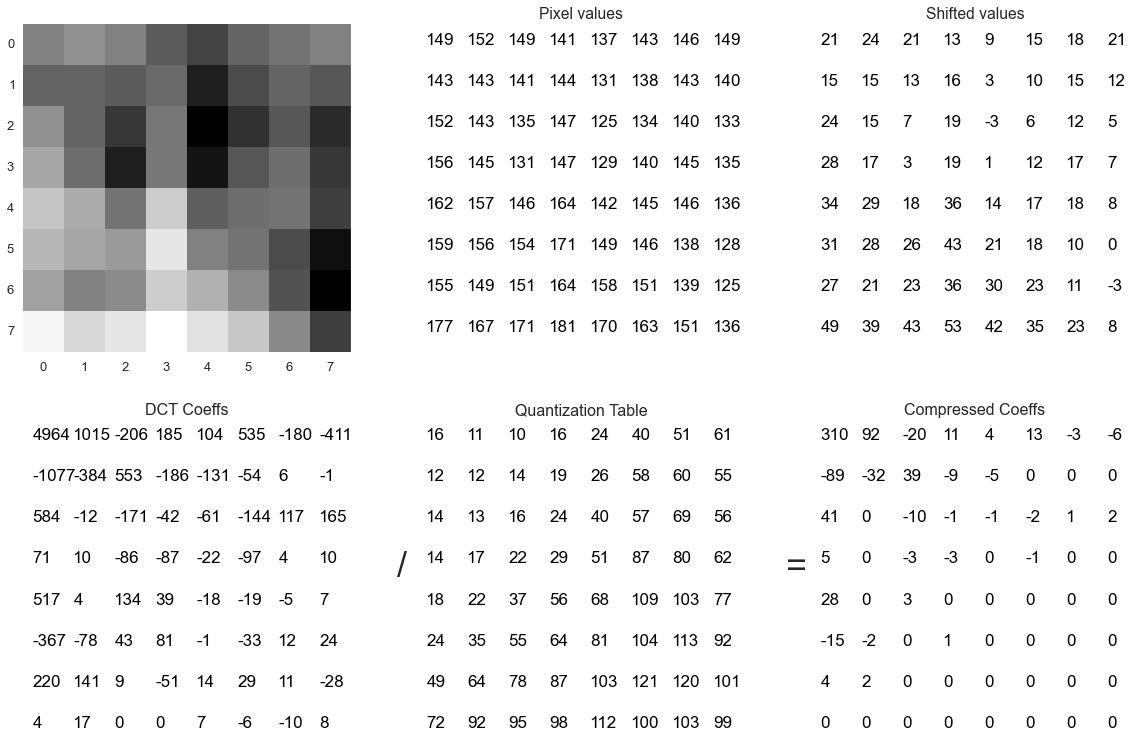

Discrete Cosine Transform (DCT)


	from scipy.fftpack import dct

	dct_coefficents = dct(dct(shifted_grid, axis=0), axis=1)

	print dct_coefficents.astype(int)

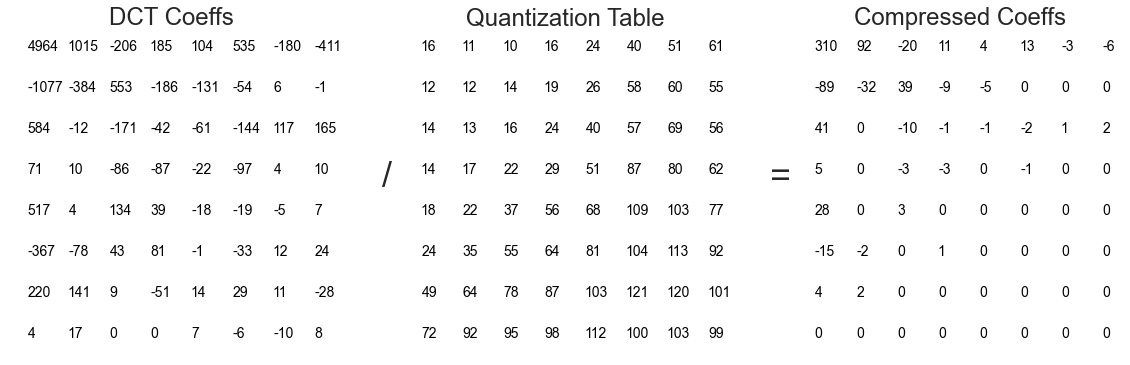

Quantization

Apply Huffman/run-length encoding

Remember...
  • Doing Stuff to Points
  • Signals are composed of sine waves
  • Adequate sampling rate is important
  • Understand the underlying process

Presentation on amyboyle.ninja

Source at github.com/boylea/dsp-talk


@amylouboyle
